Supergun MAK Strike

Supergun MAK Strike
Zoom image

Our previous price 74,95 EUR
Now only from 69,99 EUR
you save 7 % / 4,96 EUR

19 % VAT incl. excl. Shipping costs

Shipping time: 2 Weeks

Product no.: Supergun MAK Strike
Supergun MAK Strike
Case:
Power Supply Unit:
CPS2 Harness:
Power Supply Adapter:

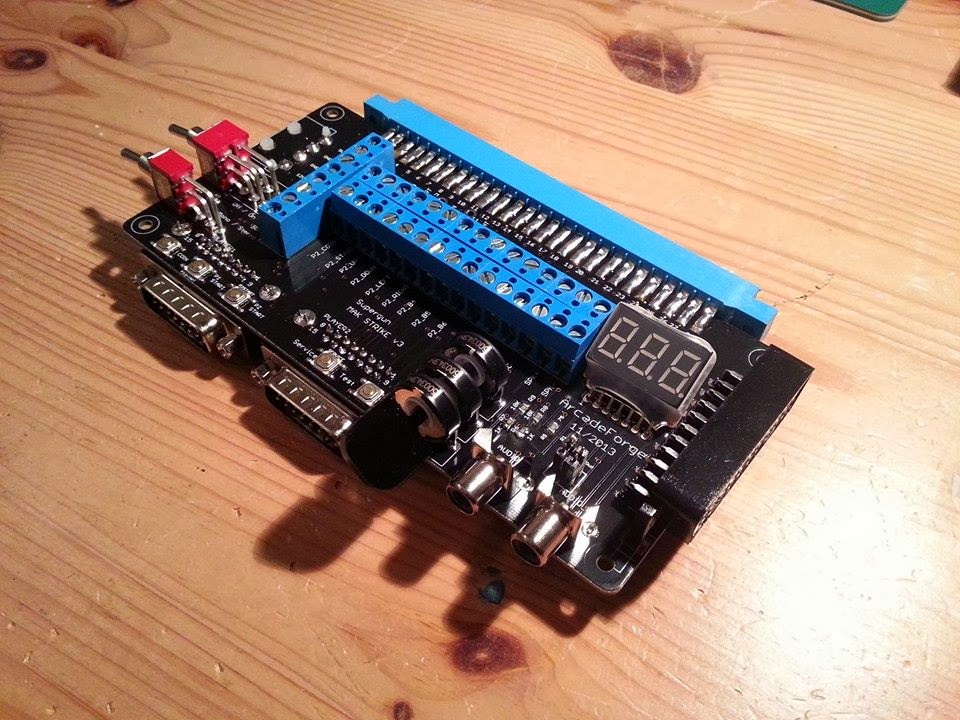

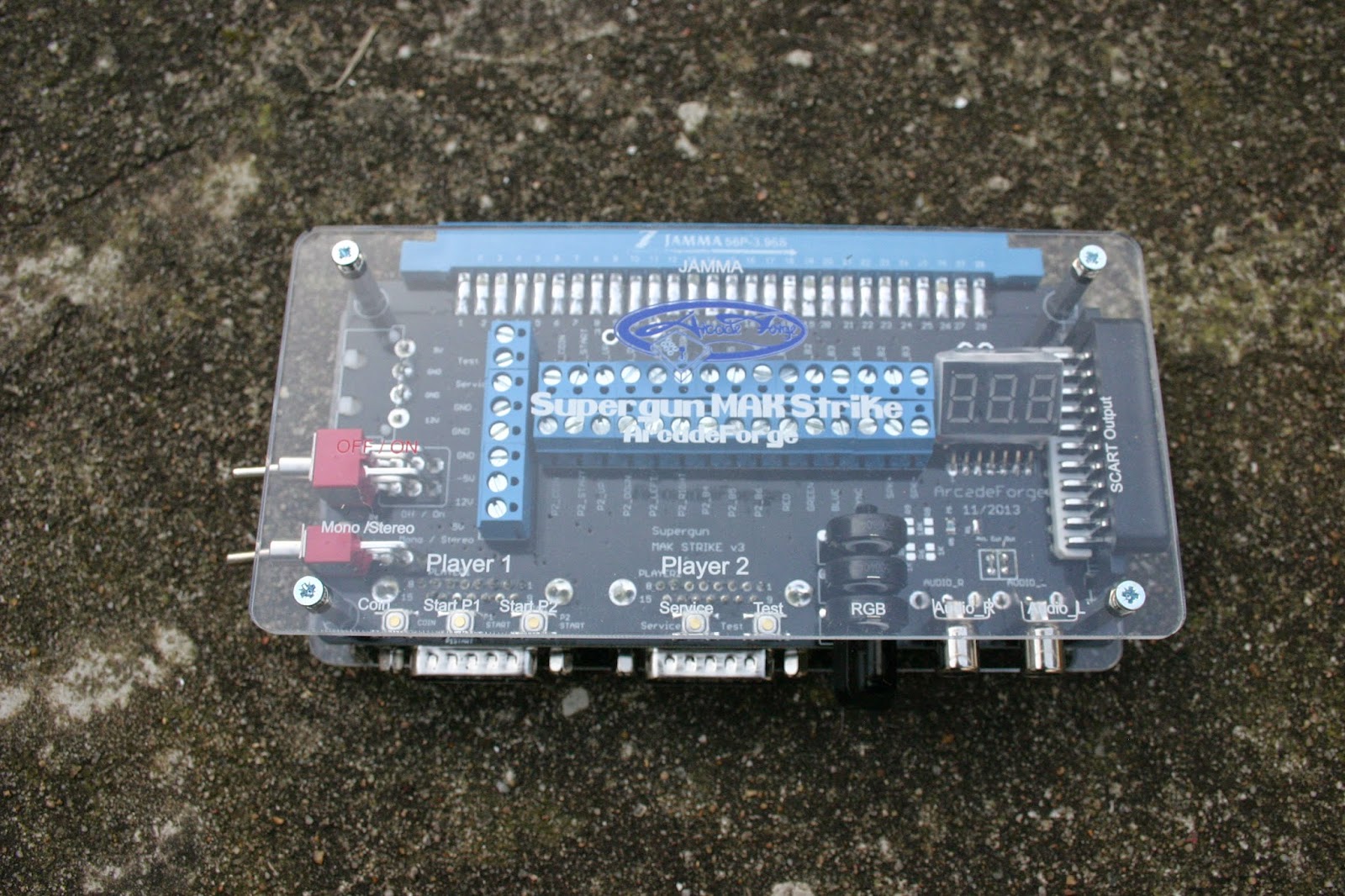

New Supergun MAK Strike v3







Features

  • Usability :  All the user interfaces are reachable from the side of the PCB.
  • SCART support is now designed. It switches automatically to RGB and AV mode.
  • Stereo Audio and Mono audio, select between Stereo or Mono with a switch.
  • Audio SCART Sound interface and RCA Chinch Audio and via Screwterminals
  • 5V display
  • Standard MOLEX PC Power Supply Unit plug.
  • All signal via Screw Terminals
  • On and off switch
  • On and off switch status  will be indicated by a power LED.
  • NEOGEO compatible controller ports.
  • Start Player 1, Start Player 2, Coin, Test and Service Tactile Press Button.
  • RGB 3 channel potentiometer with one axle : The colors can be adjusted by using RGB 3 channel potentiometer with one axle. This 3 channel potentiometer can be controlled by one axle. Mostly all know supergun uses three different potentiometer. Thus makes it difficult to achieve a clear white level on the screen. By using only one axle for all colors at same time this clear white level is no issue anymore.
  • Extended 6 Button Jamma Pinout: The new ArcadeForge Supergun MAK comes with extended 6 Button Jamma Pinout.

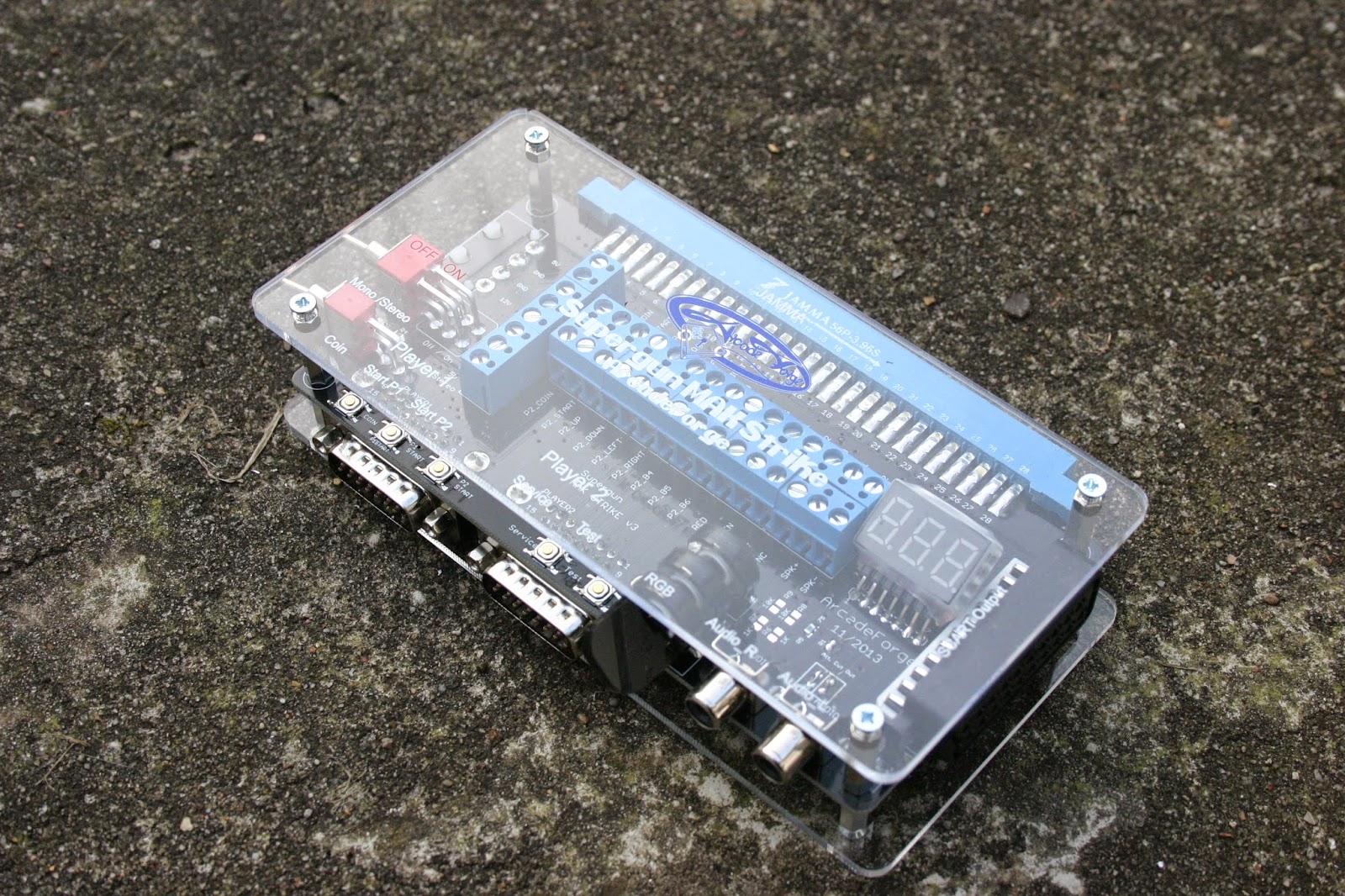

The optional CNC cut acryl enclosure is
  • CNC cut
  • all controls are described with CNC engravings
  • 2 mm strong

The optional Arcade Power Supply Unit comes with

  • PSU power plug optimized for Arcade PSU
  • Molex Harness optimized for Arcade PSU, 25cm length
  • Arcade PSU compatible for 110V and 220V
  • 5V adjustable via knob
  • 5V, 12V, -5V, 2x GND



The optional CPS2 / CPS3 Kickharness extension offers:

  • CPS2 / CPS3 Kickharness
  • Cable for CPS2 / CPS3 Motherboard, plug and play 15cm length
  • Open wires for screw terminals















Jamma Interface

Parts Side     Solder Side
GND 1 A GND
GND 2 B GND
+5V 3 C +5V
+5V 4 D +5V
-5V 5 E -5V
+12V 6 F +12V
NC 7 H NC
Coin Counter 1 8 J Coin Counter 2
Lock Out 1 9 K Lock Out 2
Speaker +, Audio L 10 L Speaker -
Option 11 M Option
Video Red 12 N Video Green
Video Blue 13 P Video Sync
Video GND 14 R Service Switch
Test Switch 15 S Slam Switch
Coin Switch 1 16 T Coin Switch 2
Player 1 Start 17 U Player 2 Start
Player 1 Up 18 V Player 2 Up
Player 1 Down 19 W Player 2 Down
Player 1 Left 20 X Player 2 Left 2
Player 1 Right 21 Y Player 2 Right
Player 1 Button 1 22 Z Player 2 Button 1
Player 1 Button 2 23 a Player 2 Button 2
Player 1 Button 3 24 b Player 2 Button 3
Player 1 Button 4 25 c Player 2 Button 4
Player 1 Button 5 26 d Player 2 Button 5
GND 27 e GND
GND 28 f GND


MAK Strike Controller Port Pinout

DSUB 15 pin Neo Geo MAK STRIKE
1 Ground Ground
2 NC Button 5
3 Select Coin
4 D Button 4
5 B Button 2
6 Right Right
7 Down Down
8 5V 5V
9 D NC
10 NC Button 6
11 Start Start
12 C Button 3
13 A Button 1
14 Left Left
15 Up Up



Installation

  1. Plug your Arcade PSU and check voltages with your multimeter. The Arcade PSU gives good values for 5V and 12V
  2. Plug your Arcade PSU to the Supergun MAKE Strike without any connected game. Check that voltage display shows 5V. Do not proceed if not. Check your wiring.
  3. Plug your Arcade Game to the Supergun
  4. Plug your Supergun to your home entertainment system.
  5. Plug your neogeo compatible controllers
  6. Turn on unit.
  7. Enjoy playing.
